A SCIP panel specifications sheet should do more than list panel dimensions. It should give the architect, engineer, contractor, and owner a clear basis for deciding whether the complete wall, roof, or floor assembly can meet the project’s structural, energy, fire, and constructability requirements. That level of clarity matters when teams are reconsidering wood-frame construction after the Palisades fires, hurricane losses across the Caribbean, and seismic events that have exposed weak points in conventional building methods.
Structural Concrete Insulated Panels combine a galvanized steel wire mesh system, an expanded polystyrene (EPS) core, and site-applied concrete mortar or shotcrete skins. The finished assembly is the building system. Reviewing the bare EPS core or wire mesh alone will not tell a project team how the completed SCIP assembly will perform.
Start With the SCIP Panel Specifications Sheet
A useful SCIP panel specifications sheet identifies the exact panel type and its intended application: exterior load-bearing wall, non-load-bearing partition, roof, floor, or specialty condition. That sounds basic, but it prevents a common specification mistake: carrying one generic panel description through an entire set of drawings even though different assemblies have different loading, reinforcement, opening, and finish requirements.
The sheet should establish panel geometry, including overall panel thickness, EPS core thickness, mesh configuration, wire diameter, spacing, and the type and spacing of welded diagonal trusses or connectors. It should also state the galvanized coating or corrosion-protection requirements for the steel components, particularly for coastal and high-humidity projects.
Dimensions affect more than insulation. Core thickness influences thermal resistance and wall depth, while mesh and truss geometry affect the ability of the assembly to receive concrete skins and transfer forces through the finished panel. A project in a hot Caribbean climate may prioritize thermal performance and corrosion exposure. A multistory building in a seismic region may require more detailed engineering around wall layout, collectors, diaphragms, reinforcement, and connections.
Specify the Finished Assembly, Not Just the Panel
SCIP is sometimes described as a panel product, but the structural performance comes from the completed composite assembly. The specifications should define the concrete or mortar skin thickness on each face, minimum compressive strength, reinforcement at openings and edges, and the approved application method.
The application method matters. Pneumatically applied mortar, shotcrete, and hand-applied mortar can produce different production rates and quality-control demands. The specified material must fully encapsulate the mesh and achieve the required thickness without voids, thin spots, or exposed steel. Contractors should also address curing, surface preparation, mix consistency, and inspection procedures before wall production begins.
Where Structural Panels GCT equipment is used for mixing and mortar application, the panel package and equipment plan can be coordinated as one field system. This supports more consistent material delivery, but it does not eliminate the need for trained crews, mockups, thickness verification, and engineering oversight.
Confirm the Project Design Basis
A specifications sheet is not a substitute for structural engineering. It is the technical starting point that lets the engineer of record design and detail the SCIP assembly for the specific building.
The design basis should identify the governing codes, occupancy category, wind exposure, design wind speed, seismic design criteria, snow loads where applicable, flood exposure, and any special impact or security requirements. For high-wind regions, panel-to-foundation connections, roof diaphragm design, parapet details, and openings deserve the same attention as panel strength. A hurricane-resistant wall system can still fail as a building if roof edges, anchors, or door and window interfaces are not engineered as a continuous load path.
For seismic projects, the engineer should review how walls are distributed in plan, how floor and roof diaphragms transfer forces, and how panels connect at corners, intersections, and level changes. SCIP systems can provide a strong, monolithic concrete-finished enclosure, but performance depends on the complete structural design and executed connections.
Do not accept broad claims such as “earthquake proof” or “hurricane proof” without supporting project-specific calculations and applicable test documentation. The better question is whether the proposed assembly, engineering, connections, and construction quality meet the required load cases for that site.
Review Thermal, Moisture, and Fire Requirements Together
EPS provides continuous insulation within the panel, which can reduce thermal bridging compared with many framed wall assemblies. The specifications should state the required thermal performance for the climate zone and clarify whether stated R-values apply to the EPS core alone or to the entire finished wall assembly.
That distinction is essential. Whole-wall thermal performance can be affected by concrete skins, structural details, openings, thermal bridges at connections, and the selected interior and exterior finishes. Energy modeling may be appropriate for commercial buildings and for owners evaluating long-term operating costs.
Moisture control also requires assembly-level thinking. The specifications should define exterior coatings, water-resistive barriers where required, flashing, drainage details, sealants, and transitions at penetrations. In coastal and storm-prone areas, detailing around windows, doors, roof-to-wall intersections, and service penetrations is often where water-management performance is won or lost.
Fire performance must be reviewed with the same discipline. EPS should be protected within the tested and specified concrete-finished assembly. The design team should verify the relevant fire-resistance requirements, finish thicknesses, fire testing or evaluation documentation, and code pathway for the proposed wall or roof construction. A fire-resilient project is not created by a marketing label. It is created by a compliant assembly, proper detailing, and workmanship that maintains required protection across the building envelope.
Put Installation Requirements in the Specification

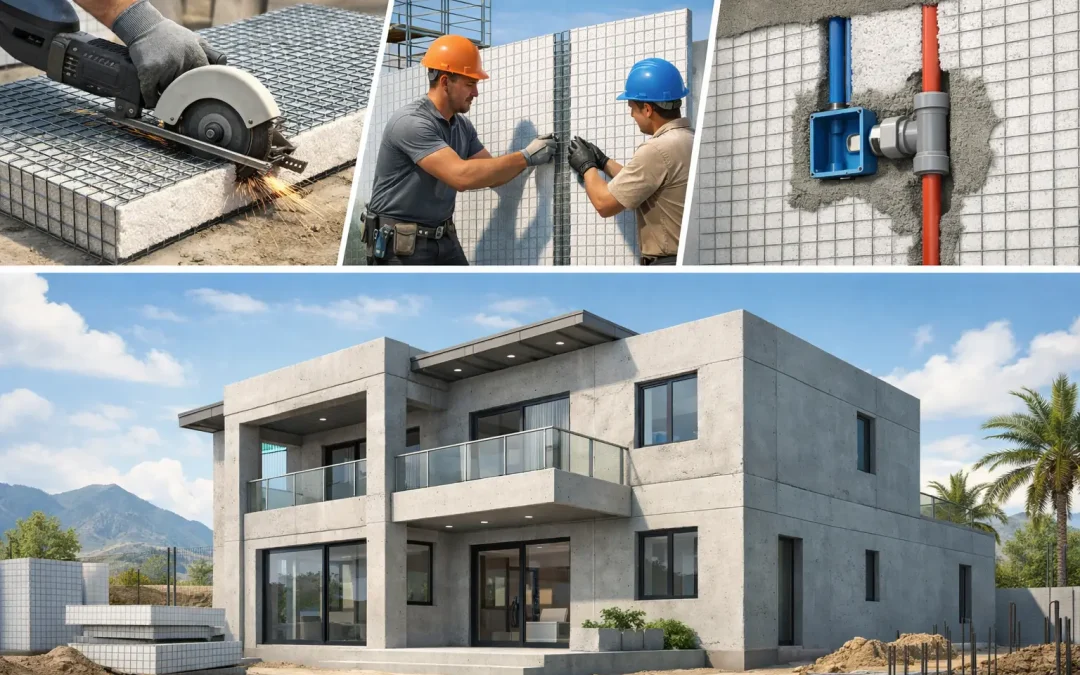

SCIP construction can shorten enclosure schedules and reduce framing-intensive labor, especially when the project team plans panel handling, cutting, bracing, electrical coordination, and mortar application before materials arrive. The specifications sheet should support that planning rather than leave it to field improvisation.
Panel layout drawings should show dimensions, openings, corners, intersections, roof slopes, and the sequence for erection. They should identify temporary bracing requirements and any field-cut limitations. Electrical and plumbing work must be coordinated so chases, penetrations, and boxes do not compromise mesh, reinforcement, cover, or required concrete skin thickness.
For a practical installation specification, include these field controls:
- Verification of foundations, slab edges, embeds, and anchors before panel placement.
- Confirmation of panel alignment, plumbness, bracing, and opening dimensions before concrete application.
- Inspection of mesh laps, reinforcement, connectors, and service penetrations before they are covered.
- Documented checks for mortar or shotcrete thickness, compressive strength, curing, and finish quality.
These controls are not paperwork for its own sake. They protect the structural and fire performance the design team expects from the completed assembly.
Request Documentation That Supports Approval
Code-conscious builders and insurers need documentation that can be reviewed, not just product brochures. The SCIP specification package should identify applicable technical evaluation reports, test reports, engineering design data, installation instructions, and quality-control requirements. The authority having jurisdiction may also require project-specific sealed calculations and details from the engineer of record.
Submittals should be coordinated early with the architect, structural engineer, energy consultant, fire consultant when applicable, and contractor. This is especially valuable on projects replacing conventional wood framing with SCIP. The change affects wall thickness, connection detailing, mechanical coordination, sequencing, and potentially the exterior finish strategy.
Cost comparison should also be based on the complete scope. SCIP may reduce framing labor, improve schedule performance, and lower cooling loads, but projects still need concrete application crews, equipment, engineering, inspections, and disciplined coordination. The right comparison is installed system cost and lifecycle value, not panel price versus lumber price.
A well-prepared SCIP panel specifications sheet gives the project team a disciplined way to move from interest to a buildable system. When resilience, energy performance, and construction speed all matter, ask for the panel data, the completed-assembly requirements, and the project-specific engineering before committing the design.
